Clashes

Clashes

This command can be used if there are more than one network in the drawing to check the crossing points

It can be used to show only the crossing points with certain clearance or less, this way critical clashes can be detected and fixed.

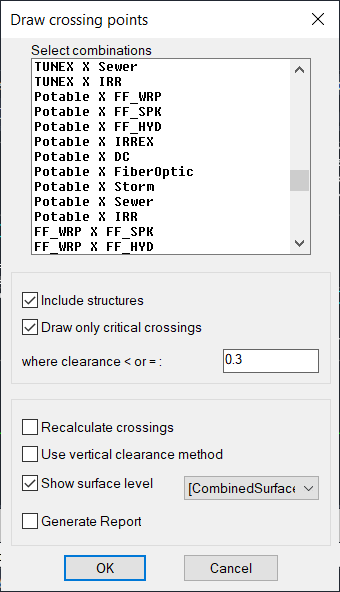

1- Select the networks combinations (hold CTRL to select more)
2- Check this to check clashes with structures. Horizontal perimeter will be used regardless the node depth.
3- Check this to limit the checking to the clearance given or below.
4- Changing pipe levels require recalculating of the crossing points.
5- By default, the real distance will be used, check this if the vertical clearance at the crossing point to be used.

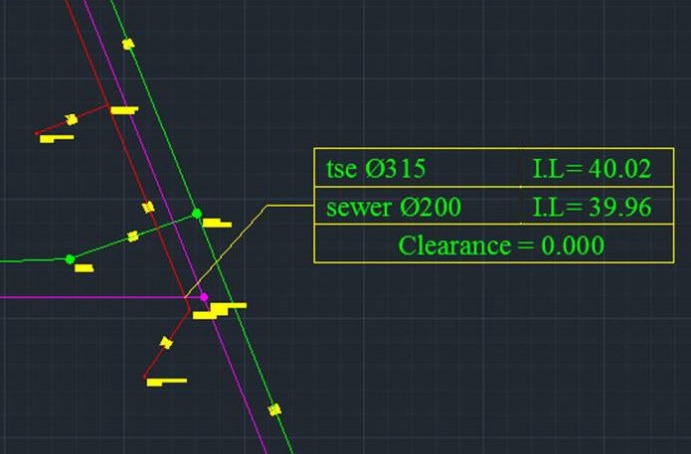

If clashed detected, a flag (block) will be used at the clash location showing information about the top and the bottom pipes details and levels and the clearance distance
Report can be created by exporting the contents of the crossing blocks to CSV file and then modifying it.

Clashes
Clashes
