Edit Pipe Size and Materials



Command: EDS

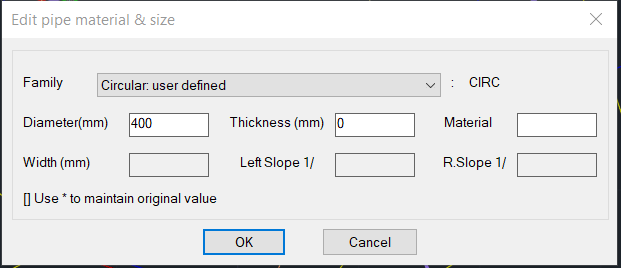

If the selection set was pipes:

The user have 3 section types: Circular, Rectangular and Channel Section.
Circular: Require diameter and thickness only.
Rectangular: Require height , width and thickness.
Channel: Require height, base width and side slopes in order to define the top width slope value, this value represent how many heights to be added to the side, 0 means vertical, 1 means same height value added to form 45 degrees.
if more than one pipe selected, use star symbol * to protect this field from being modified.
